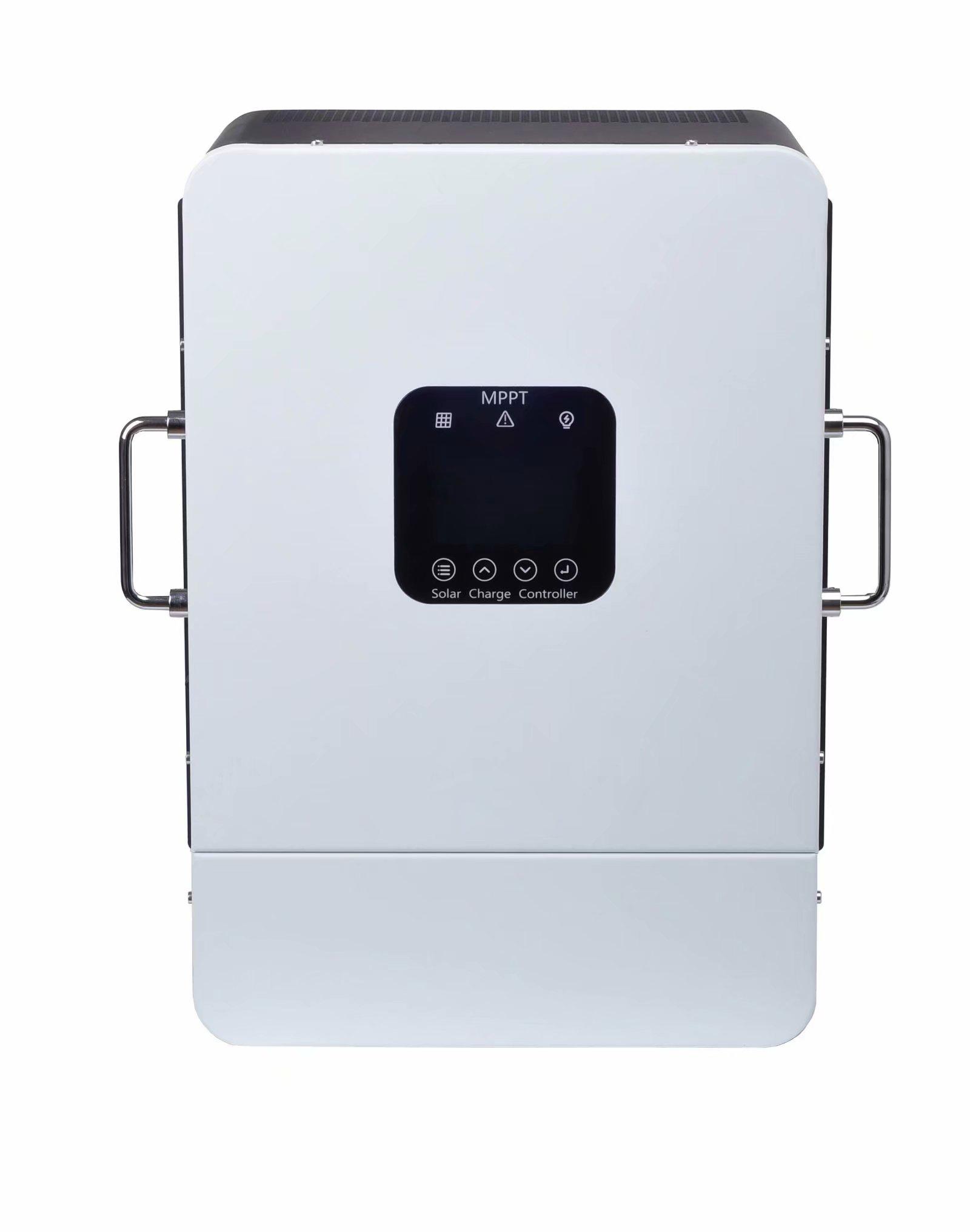

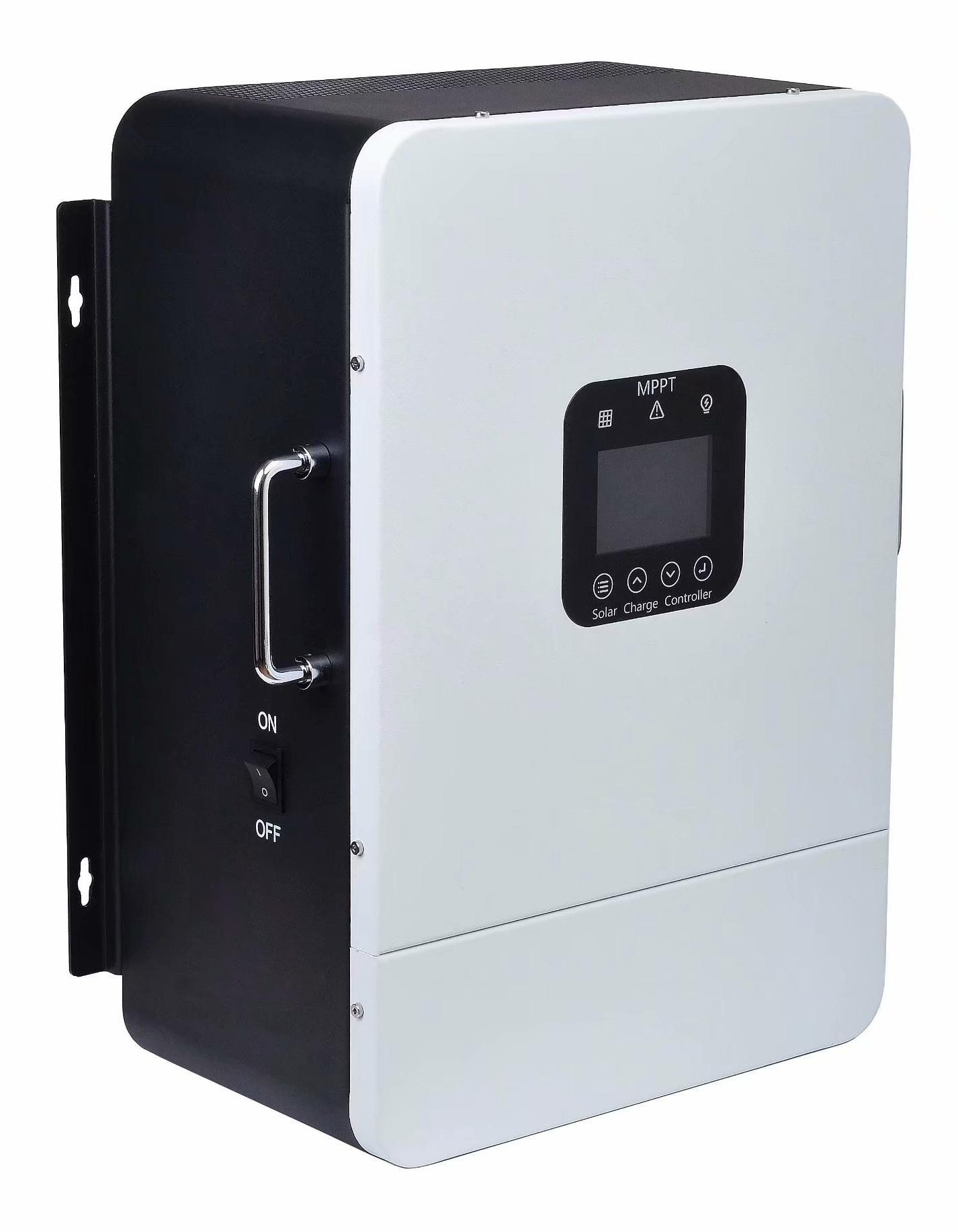

192V 240V 360V 384V MPPT Solar Charge Controller

192V 240V 360V 384V MPPT Solar Charge Controller

MPPT Solar Charge Controller Description

The solar controller adopts multiphase synchronous rectification technology and common negative pole design, it chooses high speed processor and advanced MPPT algorithm to make it has high response speed, high reliability and other standards.

The advanced MPPT algorithm that the solar controller adopts can trace the maximum power point of PV arrays quickly in any situation to obtain the max. power from PV arrays. And the multiphase synchronous rectification technology can achieve high conversion efficiency in any charging environment and improve the utilization rate of solar power system greatly. According to the rated voltage of battery bank system, our factory can provide the MPPT solar charge controller from 192V to 540V which suitable to almost off grid solar power system

MPPT Solar Charge Controller Features

1.1.1 High speed & performance 32bit processor, advanced EMC design

1.1.2 Advanced MPPT tracking algorithm, the tracking efficiency more than 99%

1.1.3 High performance IGBT power module as electronic switch, plus multiphase synchronous rectification technology, improves the stable greatly

1.1.4 Ultrafast maximum power point tracking speed to ensure tracking efficiency

1.1.5 Perfect battery protection function and advanced battery activation technology which increases battery lifespan 30% at least and improves the system performance

1.1.6 Widely PV arrays’ voltage input, this can save the cost of PV combiner box, wires and construction

1.1.7 Full enclosed duct design and high-speed fan for cooling makes the controller suitable for various harsh environments

1.1.8 3’’ LCD screen and LED indicators show working parameters and system status

1.1.9 Parameters can be adjusted through touching keys in LCD panel

1.1.10  Users can check the power generation of daily, monthly and total through the statistical function of generating capacity (SOC)

1.1.11  Complete menu display and operation, plus the humanized design of browsing interface, makes the operation more easy

1.1.12  It shows the environment temperature, data and real time, auto temperature compensation function

1.1.13  Twice protection function to protect battery from damage when the power switch is down

1.1.14  Standard Modbus communication protocol for RS-485 or GPRS communication to extend the communication distance (optional function)

DNM-192V/50A MPPT Solar Charge Controller Technical Parameters
