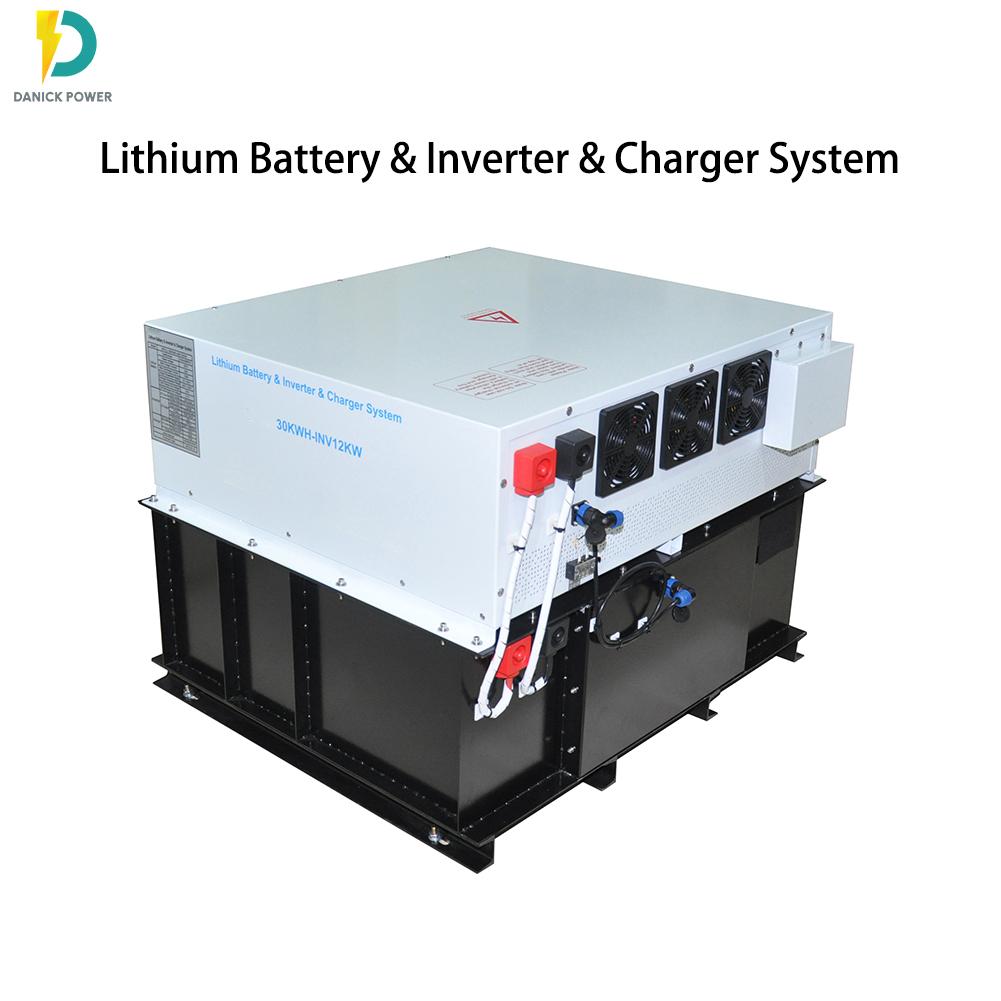

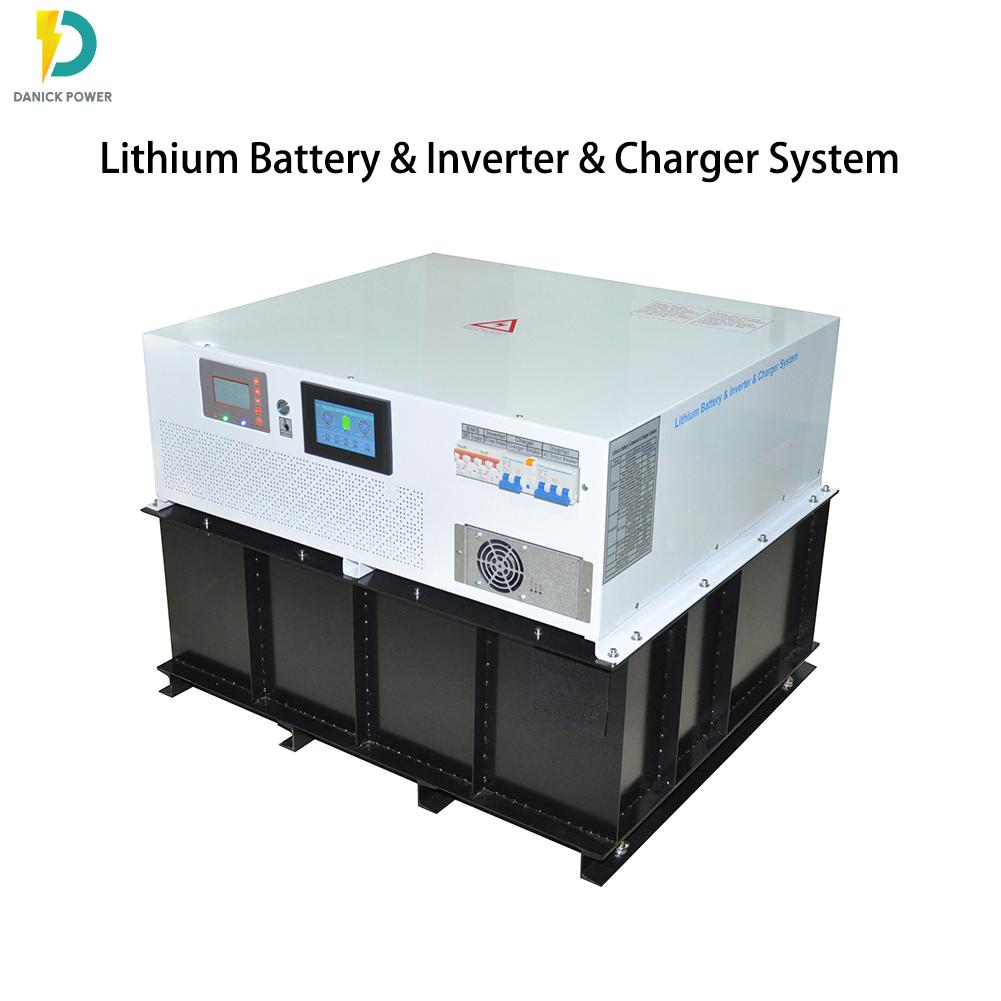

Off grid solar lithium battery system 30KWH-12KW for mobile application
LiFePO4 Lithium Battery with BMS System Introduction:
- Long service life, 3000 cycles, service life > 10 years.
- Including BMS(battery management system) and LCD monitoring.
- Including battery cabinet, all battery cables are connected well.
- Safe and reliable.
- High energy density, strong endurance.
- 5’’ touch screen LCD integrated communication, convenient for real-time monitoring of data.
- Safety and environmental protection.
- High cost performance, excellent quality, longer service life.
- Perfect protection functions: short circuit, over load, under voltage, over voltage and over heat protection.
- We can customize 10KWH-1200KWH lithium battery energy storage system.
- Our lifepo4 lithium battery with BMS(battery management system) including battery cabinet, all battery cables are connected well, including BMS and LCD display, when customer receive it then can directly use.
- Our lithium battery BMS also can manage solar charge controller and AC-DC battery charger intelligently charge battery based on battery actual status, can built battery charger in our battery cabinet.
LiFePO4 Lithium Battery with BMS System Advantages:
1. Our BMS use NXP(USA) automotive-grade high performance chip, strong anti-interference, good reliability, wide temperature range.
2. We use brand new high quality A-grade battery power cell, longer service life.
3. Charging and discharging are controlled separately, more convenient and reliable to control charging and discharging.
4. Big color LCD touch screen display, easy setting and operation.
5. Can built in solar charge controller and AC-DC charger, our BMS can intelligently manage charger to charge battery well, BMS can communicate well with battery, solar controller, ac charger and inverter, one integrated intelligent monitoring system.
6. Approved by UL1741 certificate.
7. Accept customized product, our lithium battery system are widely used in many situations, such as: Different residential home, hotel, shop, factory, hospital, commercial buildings, electric car, RVs, Van, mobile dining car, heavy truck, different ship/boats, ice-cream car, outdoor camper,.etc.
Parameters
Battery total capacity: 30KWH
Battery bank rated voltage: 307VDC
Battery bank rated capacity: 100AH (96pcs 100AH power cell in series)
Including battery cabinet, all battery cables are connected well, built in
BMS(battery management system), battery cabinet with LCD monitoring
Build in 307V-50A MPPT solar charge controller
Build in 3 phase 480Vac to 307Vdc 20A AC-DC Charger
Build in 12KW 307Vdc to 3 phase 480Vac 60Hz off grid inverter
Including warming system
Cabinet size: 1520mm long x 616mm deep x 508mm high.
(Specification can be customized to your requirements)
